Description

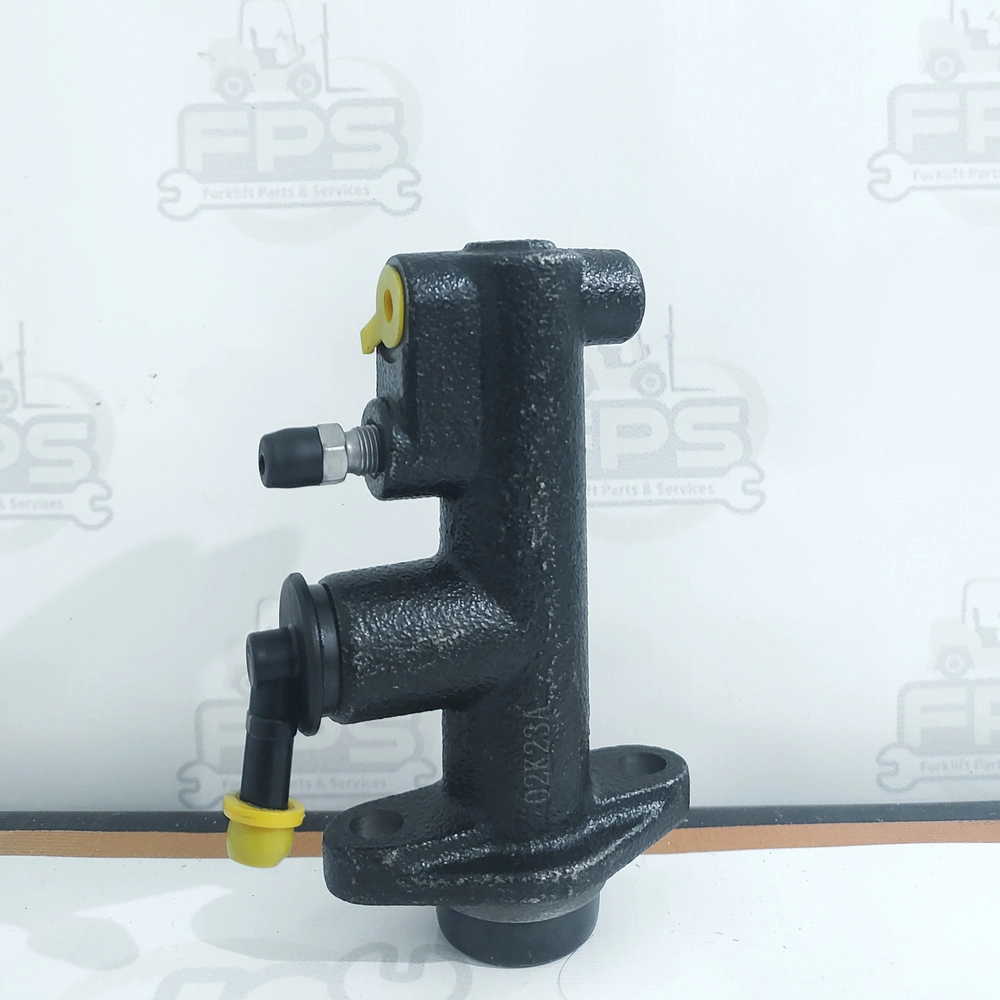

The Brake Master Cylinder Assembly is responsible for generating hydraulic pressure needed to activate the braking system of the TCM FD30C6 forklift. When the operator presses the brake pedal, the master cylinder converts this mechanical force into hydraulic pressure. This pressure is then transmitted through the brake lines to the wheel cylinders or calipers at each wheel, ensuring that the forklift can slow down or stop safely.
Components:
- Master Cylinder Body: The central part of the assembly that houses the piston and reservoir. It’s where hydraulic pressure is created.
- Piston: Inside the master cylinder, the piston moves back and forth to generate hydraulic pressure when the brake pedal is pressed.
- Reservoir: Holds brake fluid and supplies it to the master cylinder. It’s crucial for maintaining proper fluid levels and ensuring effective braking.
- Brake Fluid: The hydraulic fluid that transmits force from the brake pedal to the wheel cylinders.
Specifications:
- Model: TCM FD30C6 (specific to older models)
- Function: Converts mechanical force into hydraulic pressure for the braking system
- Compatibility: Designed to fit the TCM FD30C6 forklift, ensuring proper alignment and functionality with the vehicle’s braking system
Installation and Maintenance: Proper installation is essential for optimal performance. The brake master cylinder should be installed according to the manufacturer’s specifications to avoid leaks and ensure efficient braking. Regular maintenance includes checking brake fluid levels, inspecting for leaks, and ensuring that the master cylinder and associated components are in good working condition. Any issues with the master cylinder can significantly affect braking performance and safety, so timely repairs or replacements are crucial.
In summary, the Brake Master Cylinder Assembly for the TCM FD30C6 is a vital component for the forklift’s braking system, converting mechanical force into hydraulic pressure to ensure effective braking. Regular maintenance and proper installation are key to maintaining optimal performance and safety.
