Description

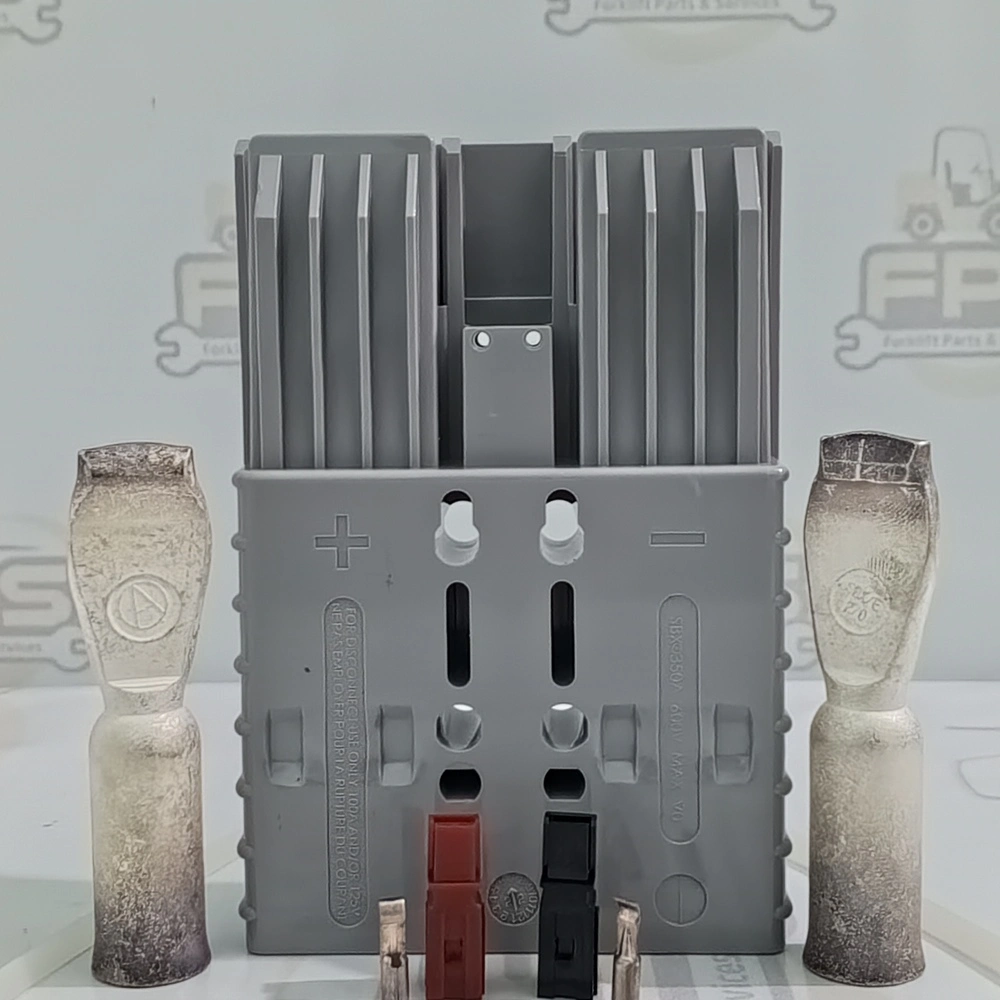

The Anderson SBX 350 amp connector is a high-power electrical connector designed for demanding applications that require reliable performance and safety. It is widely used in industries like material handling, power distribution, and renewable energy.
Specifications:
- Current Rating: 350 amps – Designed to handle large current loads, making it suitable for heavy-duty applications.
- Voltage Rating: 600 volts – Capable of safely operating in high-voltage systems up to 600 volts.
- Poles: Available in 2 to 4 pole configurations, allowing for multi-circuit connections and increased versatility in different applications.
- Contact Material: Features silver-plated copper contacts to provide low resistance, high conductivity, and durability.
- Wire Size: Supports wire sizes ranging from 4/0 AWG to 1 AWG, offering flexibility for various cabling requirements.
- Housing Material: Constructed from a high-impact, flame-resistant polycarbonate material, usually UL 94V-0 rated, ensuring robust performance in harsh environments.
- Operating Temperature: Rated for operation in a temperature range from -20°C to 105°C (-4°F to 221°F), making it suitable for both indoor and outdoor use.
- Mating Cycles: Typically rated for up to 10,000 mating cycles, ensuring long-term reliability and durability in frequent-use applications.
Features:
- Genderless Design: The genderless design allows for easy mating and reduces the need for multiple connector types, simplifying the connection process.
- Durability: The rugged housing and high-quality contacts provide a secure and durable connection, ideal for heavy-duty environments.
- Chemical Resistance: Resistant to chemicals, oils, and fuels, making it suitable for use in industrial and automotive environments.
- Interchangeable Housings: The SBX series housings are color-coded and mechanically keyed to prevent accidental mismating, ensuring safety in multi-connector environments.
- Ease of Installation: The connector features a quick and secure snap-lock mechanism, making installation straightforward and reliable.
Applications:
- Material Handling: Commonly used in forklifts, electric vehicles, and other material handling equipment for power connections.
- Power Distribution: Ideal for use in power distribution systems where high-current and high-voltage connections are needed.
- Renewable Energy: Suitable for solar power systems, wind turbines, and other renewable energy applications requiring high-capacity connectors.
- Backup Power Systems: Used in UPS systems and backup generators for secure and reliable power connections.
The Anderson SBX 350 amp – 600 volt connector is a robust and versatile solution for high-power applications, ensuring safe and reliable connections in demanding environments.
