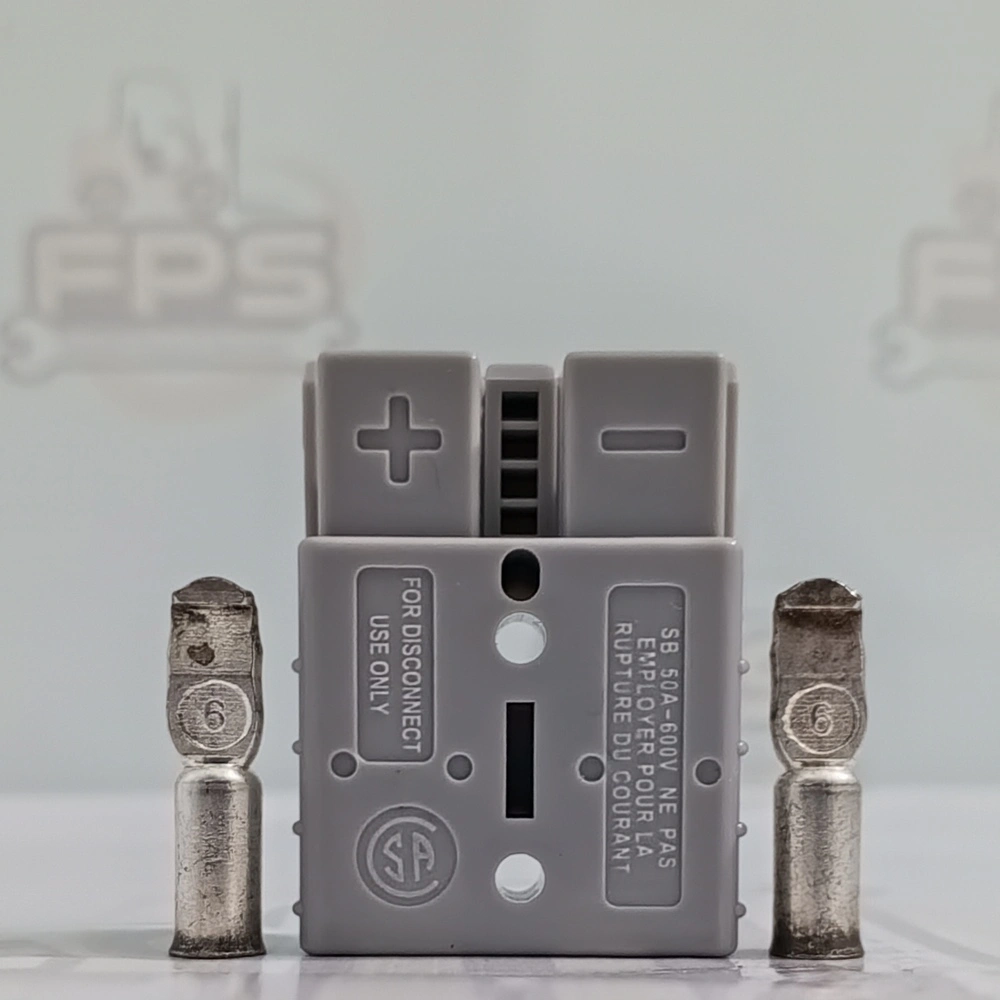

Anderson-SB-50-Amp-Receptacle-600 Volts

The Anderson SB 50 amp receptacle is a versatile and reliable connector often used in various electrical applications. Here’s a detailed breakdown of its features and specifications.

Specifications:

1. Current Rating: 50 amps – This indicates the maximum continuous current that the connector can handle without overheating or failure.
2. Voltage Rating: 600 volts – The connector is designed to operate safely in systems up to 600 volts.
3. Poles: Typically, the SB 50 series has 2 poles, allowing it to connect two wires or circuits.
4. Contacts: The connector uses silver or tin-plated copper contacts for efficient conductivity and reduced resistance.
5. Wire Size: Accepts wire sizes ranging from 6 AWG to 16 AWG, making it suitable for a variety of cable types and applications.
6. Housing Material: Made from a durable, impact-resistant plastic housing, often UL 94V-0 rated for flame resistance.
7. Operating Temperature: Usually operates within a temperature range of -20°C to 105°C (-4°F to 221°F).

Features:

1. Genderless Design: The SB 50 amp connectors are genderless, meaning they can connect to each other, simplifying the mating process and reducing the need for specific male/female configurations.
2. Durable Construction: The housing and contacts are designed for rugged environments, providing reliable connections in various applications, including industrial, automotive, and power distribution.
3. Easy Installation: The connectors are easy to assemble and install, with a snap-lock feature ensuring a secure connection.
4. Versatility: Suitable for a range of applications, including battery charging, power distribution, and equipment connections.

Applications:

• Battery Connections: Commonly used in battery charging systems for forklifts, golf carts, and other electric vehicles.
• Power Distribution: Suitable for distributing power in industrial and commercial settings.
• Renewable Energy Systems: Can be used in solar power installations and other renewable energy applications.

Safety Considerations:

• Ensure that the connector is used within its rated voltage and current limits to prevent overheating and potential failure.
• Properly crimp or solder the wires to the contacts to ensure a secure and reliable connection.
• Inspect connectors regularly for signs of wear or damage, especially in high-use or harsh environments.

By using the Anderson SB 50 amp receptacle, you can ensure a secure and efficient connection for high-voltage and high-current applications.
