Description

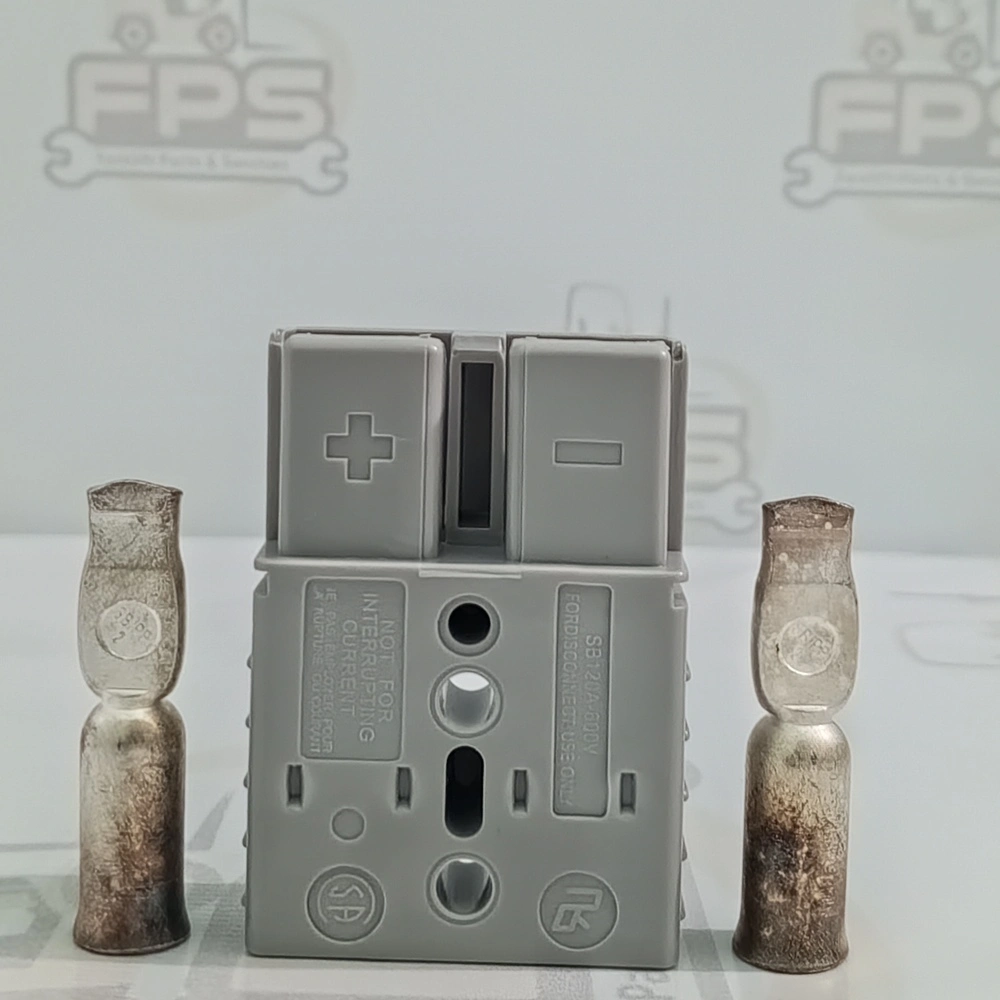

The Anderson SB 120 amp receptacle is a versatile and reliable connector designed for medium to high-current applications. Its robust construction and high-voltage capacity make it suitable for a range of industrial, automotive, and power distribution applications.
Specifications:
- Current Rating: 120 amps – Suitable for medium to high-current applications, providing secure connections for demanding electrical systems.
- Voltage Rating: 600 volts – Designed to operate safely in systems up to 600 volts, suitable for various power applications.
- Poles: Typically has 2 poles, allowing for simple and efficient power connections.
- Contact Material: Utilizes silver or tin-plated copper contacts for low electrical resistance and high conductivity, ensuring minimal power loss and reliable performance.
- Wire Size: Compatible with wire sizes ranging from 10 AWG to 1/0 AWG, offering flexibility for different wiring requirements.
- Housing Material: Made from high-impact, UL 94V-0 rated flame-retardant polycarbonate, providing durability and safety in demanding environments.
- Operating Temperature: Rated for operation within a temperature range of -20°C to 105°C (-4°F to 221°F), suitable for various environmental conditions.
- Mating Cycles: Rated for up to 10,000 mating cycles, ensuring long-lasting durability and consistent performance in frequent-use applications.
Features:
- Genderless Design: The genderless design simplifies the connection process, allowing for easy mating without the need for specific male/female connectors.
- Durable and Reliable: The robust housing and high-quality contacts ensure a secure connection even in harsh environments, providing long-term reliability.
- Quick Installation: The snap-lock mechanism ensures quick and secure connections, reducing installation time and improving efficiency.
- Color-Coded Housings: Available in various colors, the housings are color-coded and keyed to prevent accidental mismating in systems using multiple connectors.
- Chemical and Impact Resistance: The polycarbonate housing is resistant to chemicals, oils, and fuels, making it suitable for industrial and automotive use.
Applications:
- Material Handling Equipment: Commonly used in electric forklifts, pallet jacks, and other battery-powered equipment for secure power connections.
- Automotive: Suitable for use in electric vehicles and other automotive applications requiring reliable, high-current connectors.
- Power Distribution: Ideal for use in power distribution panels and systems where a robust and reliable connection is needed.
- Renewable Energy: Used in solar power installations and other renewable energy systems for efficient power transfer.
The Anderson SB 120 amp receptacle is a versatile and durable solution for medium to high-power applications, providing safe and reliable connections in a wide range of environments.
